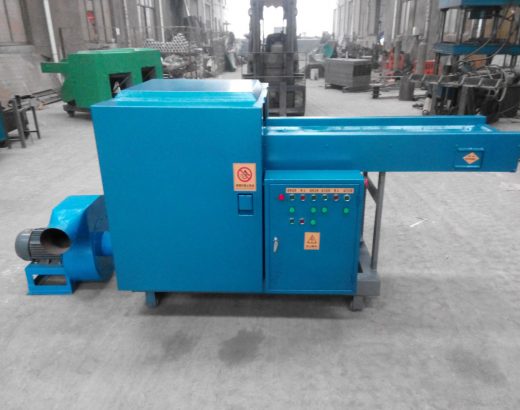

Fiber cutting machine
Fiber cutting machine
| Serial No. | Parts | Type No. | Quantity | Remark |
| 1 | Cutter motor | 11KW | 1 | |
| 2 | triangular belt | Bx2700mm | 3 | |
| 3 | conveyor motor | 1.5kw/3kw | 1 | |
| 4 | Reducer | Type 100 | 1 | |
| 5 | Pulley of cutter motor | B3160 | 1 | |
| 6 | Rotating blade plate | Φ320x940mm | 1 | |
| 7 | Distribution cabinet | Double control+ power indicator +thermal protection | 1 | |
| 8 | Input belt | 1400mmx350mm | 1 | |
| 9 | Output | Strong wind introduced draft fan | 1 | |
| 10 | Screen mesh | 8mmxΦ15 | 1 | |
| 11 | Rotating blade | Cr12mov420x70x40mm | 6 | Adjustable |
| 12 | Fixed blade | Cr12mov440x55x16mm | 2 | Double blade |
| 13 | Cutting thickness | 1-50mm | ||
| 14 | Projected output | 100-300 kg/h | ||
| 15 | Installation dimension | 3200x1000x1150mm | ||
| 16 | Feeding press roller | Steel roller | 3 | |
| 17 | Discharge outlet | Φ150mm | ||
| 18 | Tool | Special tool | 1 |
